Canon Cinema EOS C500 Mark II EF 5.9K Full Frame Digital Cinematography Camcorder with EF Lens Mount, 512GB CF Express Card & Card Reader.
Canon EOS C500 MARK II
New generation Cinema EOS System with 5.9K Full Frame sensor in a compact body, delivers breathtaking image quality with Canon colour science. Newly developed technologies ensure great flexibility and reliability for all cinematographers.
Breathtaking Full Frame image quality
Canon’s own developed 5.9K full frame CMOS sensor delivers an immersive cinematic look combined with natural, smooth skin-tones and faithful colour reproduction with Canon colour science. The sensor also provides 15+ stop latitude with a wide colour space, perfect for High Dynamic Range productions.
High quality and efficient recording formats
The EOS C500 MARK II features a newly developed DIGIC DV 7 image processor which enables Cinema RAW Light recording internally at 5.9K, as well as supporting recording of Canon’s XF-AVC format in 4K 4:2:2 10-bit. Simultaneous recording of the same file format is possible to the dual CFexpress card slots, with an additional SD card slot for proxy files. This multi-recording format provides efficiency and fulfils production requirements.
5.9K Over Sampling Processing for 4K
The EOS C500 MARK II uses a high-quality debayering algorithm when over sampling 5.9K for 4K/UHD recording. This suppresses moiré and reduces noise, resulting in a superior quality image.
Compact, lightweight and reliable
Approx. 1,730g lightweight body enables it to be comfortably rigged with gimbals, hand-held rigs, making it ideal for various shooting conditions.
Various mount and lens options
The EOS C500 MARK II provides support for optional interchangeable lens mounts for different project requirements. EF lens mount provides perfect compatibility with a huge range of Canon EF lenses including EF Cine Primes, while the optional PL mount supports the Cooke /i system. Additionally, B4 mount adapters are also available (for EF or PL mounts) to use with B4 lenses.
Highly configurable and modular design

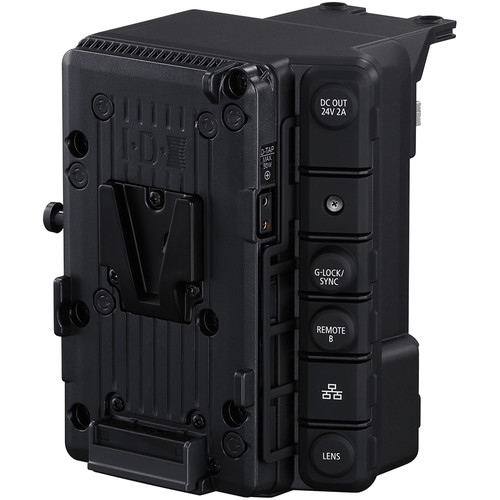

Optional Extension Units offer a flexible modular design and configuration capability to cater for a variety of production requirements. Extension Unit 1 offers multi-camera support with a Genlock interface, while Extension Unit 2 adds further interfaces, such as two more XLR inputs, ideal for broadcast applications and a V-Lock battery mount for extended recording times. The optional EVF Unit is ideal for hand-held use but also answers user’s demands to make it easily removable for gimbal applications.
Pioneering Auto Focus technology
The EOS C500 MARK II features Canon’s Dual Pixel CMOS AF Technology which offers high-speed Continuous AF. Users also benefit from smooth, intuitive touch focus operation with the new 4.3-inch LCD monitor LM-V2, as well as an improved focus control that recreates a more natural focus pull.
To further fine tune AF performance, the EOS C500 MARK II offers the ability to set the AF tracking speed and response.
First Cinema EOS to support Electronic IS
EOS C500 MARK II is the first Cinema EOS camera to incorporate Electronic Image Stabilisation (IS) into the camera body, supporting 5-axis camera shake correction. Even when used with lenses with no electronic lens communication, Electronic IS is possible by manually inputting the focal length.
High frame rates
The EOS C500 MARK II supports high frame rate recordings up to a maximum 50/60 fps at 5.9K. In 2K (crop) mode, settings from 1fps to a maximum 120fps can also be made, increasing creative possibilities. The new Slow & Fast button gives quick access for Slow & Fast settings.
Advanced Interface
The EOS C500 MARK II features an advanced 12G-SDI interface which has four times the bandwidth compared to 3G-SDI, simplifying 4K workflows by enabling it to output 4K 50/60p over a single cable. Similarly, the HDMI interface can also deliver 4K 50/60p over a single cable.
Anamorphic lens support
EOS C500 MARK II supports anamorphic lenses by electronically de-squeezing the image in the viewfinder and on connected monitors for viewing. Users can take advantage of the camera's full 5.9K resolution by using 1.3x squeeze anamorphic lenses. Popular 2x squeeze anamorphic lenses (that cover a native 1.2:1 aspect ratio on the sensor) can be used as well, using a 4:3 cropped area of the sensor.
Full Frame ND Filter
Equipped with a robust built-in motorised Full Frame ND unit, EOS C500 MARK II supports 2/4/6 and extend 8/10 stops, making it possible to create an image with shallow depth of field even in the daytime.
New OSD layout
Newly added noiseless OSD peripheral displays that do not overlay information on the screen.
Anamorphic Look
EOS C500 MARK II supports anamorphic format lenses by electronically de-squeezing the image in the viewfinder and on connected monitors for viewing. On the sensor users can take advantage of the camera's full 5.9K resolution by using 1.3x squeeze anamorphic lenses that cover the full 16x9 area of the EOS C500 MARK II sensor.
Popular 2x squeeze anamorphic lenses that cover a native 1.2:1 aspect ratio on the sensor can be used as well using a 4:3 cropped area of the sensor.
EOS C500 MARK II supports User LUTs.
Users can customise their own LUTs and load them on the camera for precise-look monitoring, also user can apply different LUTs for each terminals. Newly added LUT button gives you operational flexibility.
